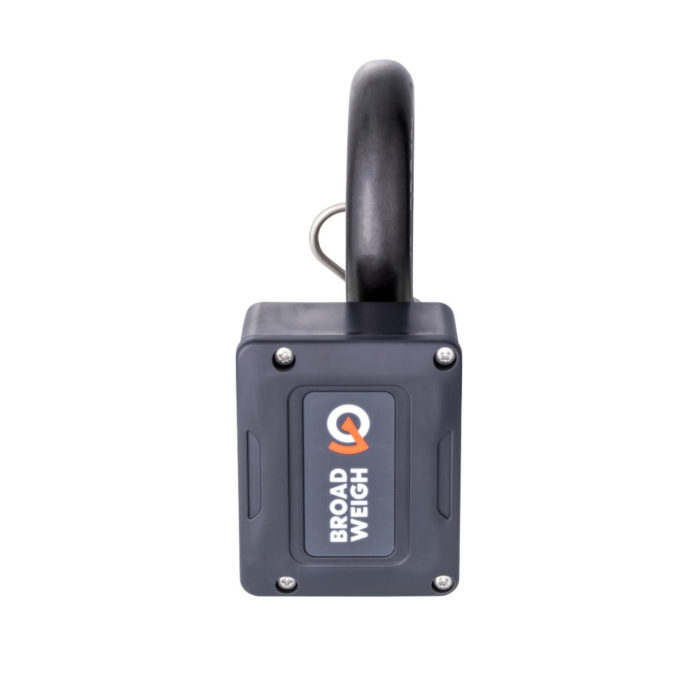

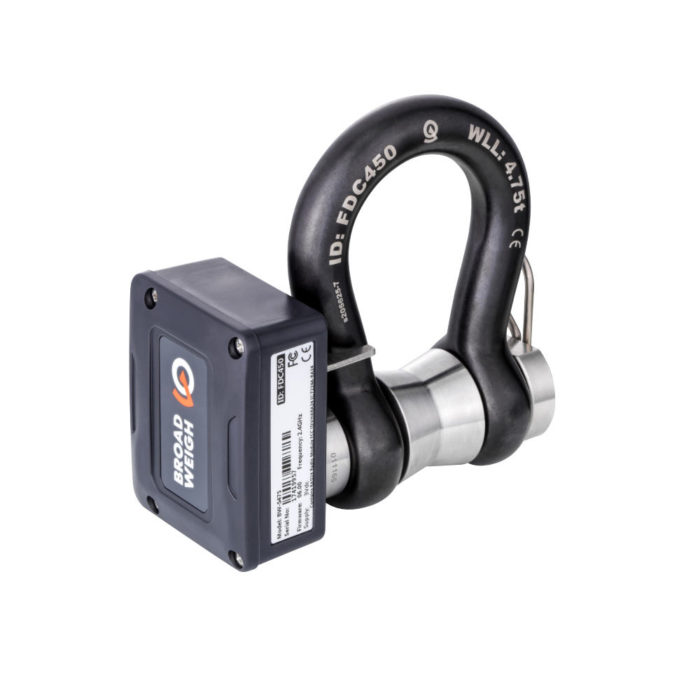

Broadweigh BW-S475 load cells

Our latest Generation 3 shackle is built to withstand the demands of challenging environments and weather conditions and enables monitoring and logging of precise loads on any given rigging point. With the latest Generation 3 Features. Read full features list here. Delivering wireless data to a choice of receivers, the system provides the tools to safely distribute weight for indeterminate loads, roof structures, mother-grids as well as indicate alarms to avoid rigging component overload situations. Using our custom designed surface treated BS EN 13889 bow, the aerospace grade stainless steel load pin is supplied with a load centralising bobbin as standard. Accuracy typically ±1% of current load or ±25 kg.

Available in either 3250 kg or 4750 kg weight range, and can transmit up to 800 m (1/2 mile).

2.4 GHz Wireless Load Monitoring > Sensors

New Generation 3 now released
Smart Sleep protects battery life whilst monitoring
Comfortable in the most challenging RF environments
Easy power cycle with one swipe using new magnetic fob
New bow brings superior tolerances, finish and durability
Unit conversion for kg, lbs, tonnes, ton, ton (US), kN
3250 kg or 4750 kg weight range
Accuracy typically ± 1% of current load or ±25 kg (whichever is the greater value)
Fully weatherised (IP67)
Machinery Directive 2006/42/EC compliant
Zero Trim Shackle
5:1 safety factor
Anti-rotational bracket
Supplied pre-calibrated
