Qu-16 takes compact digital mixing to a new level with innovative design and exceptional functionality combining to create a superb professional mixing experience.
Bristling with all the features youd expect from a top of the range digital console and incorporating technologies pioneered on our GLD and iLive digital mixing systems, Qu-16 has the power and pedigree to deliver class-leading audio performance.
Whether youre switching from analogue or updating your digital desk, its time to experience the new digital with Qu-16.
Qu-16s sixteen AnalogiQTM total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs. The AnalogiQTM design has been refined over many months to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
THE MIXING EXPERIENCE
Having massive processing power and advanced functionality is great, but it counts for nothing if you cant access the controls you need in a heartbeat. Once you start using Qu-16 youll sense the years of research into ergonomics and the hands-on mixing experience that our team has drawn upon to deliver a wonderfully natural layout and workflow. Its not about recreating an analogue interface, its about creating an experience thats fluid, comfortable and intuitive for novices, digital natives and old school road warriors alike, making all the benefits of digital mixing technology readily accessible to all.
The 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of the Qu-16 interface, providing super-fast, easy access to all settings. The user-friendly interface has been designed with clarity in mind. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
All your key processing tools are presented in a clean layout on the SuperStrip, with 1 function per physical control. The SuperStrip is complemented by an onscreen Touch Channel for intuitive access to full processing parameters without clutter or complex menu structures. Processing for Mono and Stereo inputs includes trim, polarity, HPF, gate, insert, 4 band PEQ, compressor and delay. The main LR and the Mono mixes have controls for Insert, 1/3 octave GEQ, compressor and delay. The Stereo mixes provide Insert, 4-band PEQ, compressor, delay and balance control.
Moving faders started as an expensive option in the studio desks of the 80s, and later became the norm with the advent of digital technology. Nevertheless, some entry-level digital mixers lack this precious commodity which is a fundamental part of the Total Recall approach. Fader automation is essential for rapid mixing, especially when you’re dealing with multiple monitor mixes just press a mix key and the faders immediately fly to the send levels for that mix. Qu-16 features 17 motorized ALPS faders, 16 arranged over 2 layers, allowing instant access to all channels and masters in a compact space, plus a dedicated master fader which dynamically follows the mix selection. A third, Custom layer is available for ad-hoc user strip layout, where any combination of Inputs, FX Sends, FX Returns and Mix masters can be assigned.
Qu-16s dynamics and FX algorithms are derived from the FX used in our iLive pro touring series. Some of the worlds most respected audio engineers have chosen to use iLives FX on tour in preference to top-end plug-ins and external FX units. Qu-16 boasts 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. The FX library has the ability to grow with future firmware releases. FX are returned to the mix on dedicated return channels, so youre not tying up your mono and stereo input channels. Each Stereo FX Return has a dedicated 4 band PEQ.
True digital mixing is about being able to save and recall scenes (snapshots) at the press of a button. Qu-16 can store up to 100 full Scenes for recall at will. Channels and mixes can be made Safe from Scene recall. For example, if an instrument or mic gets swapped out after the soundcheck, the channel can be made safe to avoid settings being overridden by Scene recalls. Or if a broadcast feed or walk-in iPod is added last-minute before the show kicks off, that mix or channel can be made safe from any scene change. In addition, single parameter updates can be blocked using per scene Recall Filters or a Global Recall Filter. So if you tweak the graphic EQ to reflect the room response when the audience gets in, you can block this to prevent any overwriting at scene change. Custom settings for each EQ, compressor, channel or FX can be saved as Library presets. This lets you store your tried and tested EQ setting for your favourite vocal mic or reverb pattern and apply it to other channels or shows. Libraries, Scenes and the complete Show configuration can be saved to a USB key, so you can carry the show with you, ready to use on another Qu-16.
USB AUDIO STREAMING
Qu-16s built-in interface streams up to 24 selectable tracks to your Mac or PC.
The returns from the Mac or PC can be easily assigned to the Input channels.
The interface is class-compliant on Mac OS X truly plug n play. It will be recognized straightaway by any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools.
An ASIO and WDM compatible driver is available for Windows computers.
Standard MIDI control is tunnelled over the USB connection so you can easily map the faders to the tracks of your favourite DAW. A DAW Control driver is available for easy setup and emulation of HUI or Mackie Control protocols on Mac OS X systems.
Forget soundcard drivers and software setup, Qu-16 has an integrated multitrack USB recorder, providing 18 channels of 48kHz 24bit recording and playback straight to / from your USB hard drive. Capturing stereo or multitrack recordings of your shows has never been so easy. Multitrack audio can be played back to the 16 Mono channels plus ST1. Stereo files from your hard disk can be played back to ST3.
ARMED TO THE HILT
Qu-16 is equipped with 5 cores of high efficiency ARM core processing, with dedicated ARM cores running the touchscreen display and surface, USB streaming, Qu-Drive multi-channel USB recording / playback, Ethernet and fader automation. Between them the ARM cores provide state-of-the-art processing, working in parallel to deliver extensive control, instant-on operation, and lightning-fast response. The mixers DSP farm exploits next generation dual core DSPs, giving 10 DSP cores, with 8 dedicated to the channel and mix processing alone. With so much DSP power under the hood the channel processing is only using a fraction of capacity, so Qu-16 is future-proofed, with ample room for updates and extra functionality. The Qu-16 DSP architecture employs varied bit depths, tailored to specific algorithms, with 48 bits on critical EQ functions and a 56 bit accumulator on the mix bus where it really counts, allowing every nuance of the audio to be captured in the final mix.
THE SHAPE OF THINGS TO COME

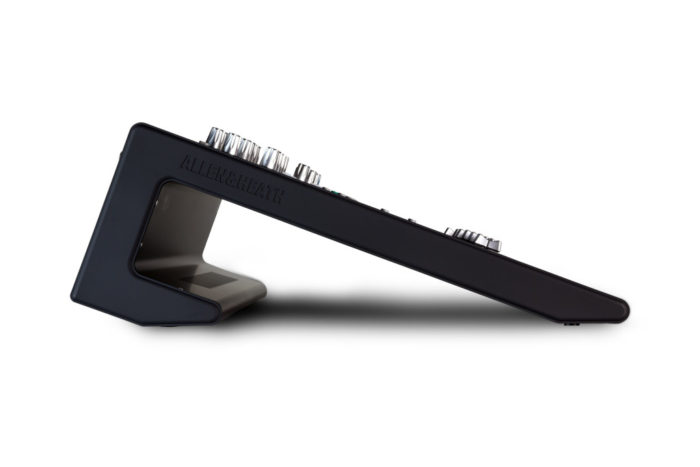

Made from 18 gauge, cold-rolled Zintec steel, Qu-16s distinctive frame is designed for strength, rigidity and ease of rack mounting. Weve done unspeakable things to that chassis in the lab and its taken everything weve thrown at it even being stomped on by our resident ex-tank commander.
Silence is a precious commodity in the live or studio environment, which is why nobody wants those moments of stillness ruined by the whirring of fans coming from the mix position. Qu-16s sleek profile generates optimal airflow through the mixer, eliminating the need for any fans.
The shape has some unexpected benefits too. When we started taking Qu-16 out to gigs we soon found the space beneath it incredibly useful for keeping our USB drive, talkback mic, cue sheet and other clutter tucked out of the way. Weve even had engineers hanging the mixer from a handy scaffold bar and mixing vertically.

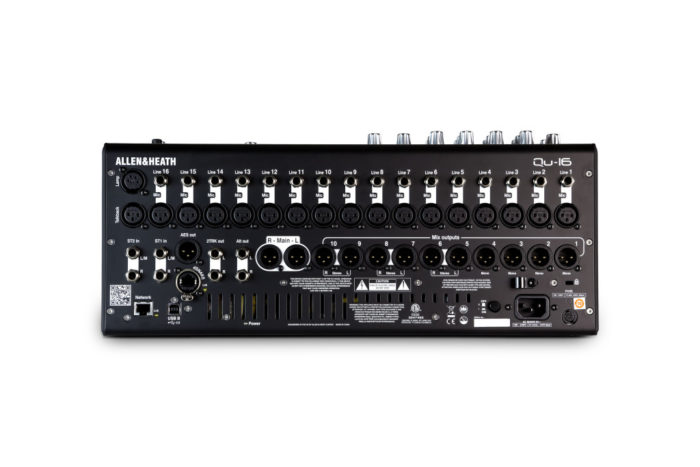

• 16 Mono Inputs (TRS + XLR)
• 3 Stereo Inputs (TRS)
• 4 Stereo FX Returns
• 16 Busses
• 12 Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
• 4 FX Engines
• AES Digital Out
• 19 Rack Mountable
• Moving Faders
• Recallable AnaLOGIQTM Preamps
• Qu-Drive direct Multitrack Recording / Playback on USB drives
• 800480 Touchscreen
• iLive FX Library
• dSNAKE Remote Audio Port
• Compatible with ME Personal Mixing System
• Qu-Pad iPad App
• USB Audio Streaming
• DAW MIDI Control
• 4 Mute Groups
• 4 DCA Groups
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
• Insert, 1/3 octave GEQ, compressor and delay on Main LR and Mono Mix outputs
• Insert, 4-band PEQ, compressor and delay on Stereo Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication
